5621

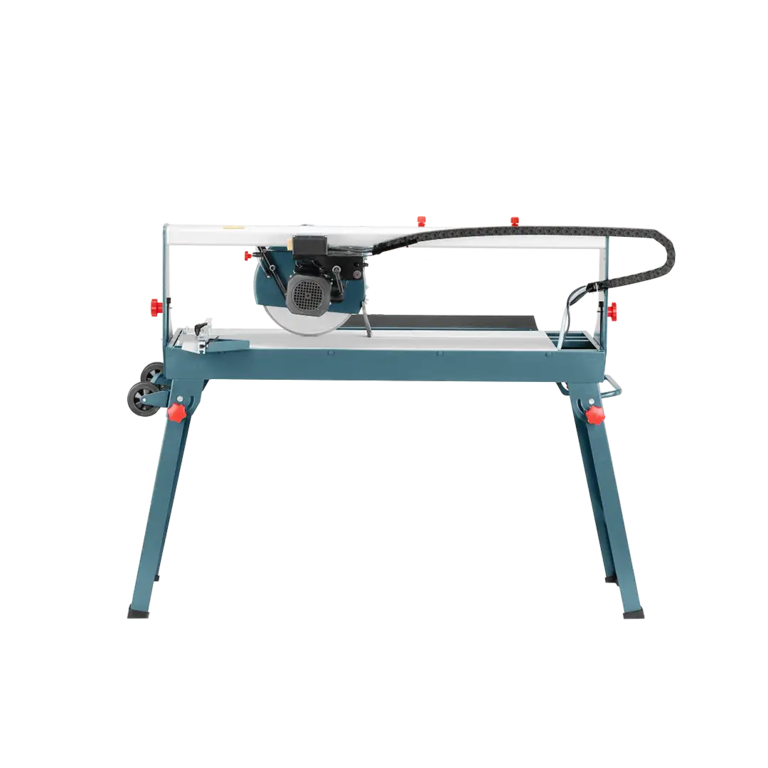

Electric Tile Saw 1500W-300mm

Write a review

Compare

Experience ultimate power with this beast of a tile cutter! Ronix 5621 has a powerful 1500-watt motor that can deliver a no-load speed of 2990 RPM. This motor works with 220 to 240 Volts and a frequency of 50 Hertz.

This product has two tables for achieving all your desired cutting lengths. The main table and the extension table are crafted from aluminum profiles. This product is also extremely precise and versatile, capable of giving you straight cuts, miter cuts, and plunge cuts.

This tile saw has a disc made of 65 Mn Steel, Corundum, and Powdered Metal. This tile cutter can achieve a cutting length of 920 mm. This product comes in a Ronix color box along with all the necessities.

Scroll down to read more about this wonderful product.

Hot Sales

Download Catalog

Detailed Description

This tile saw has a 1500 W motor that can reach no-load speeds of 2990 RPM, making it a powerful beast for the most heavy-duty tile-cutting tasks.

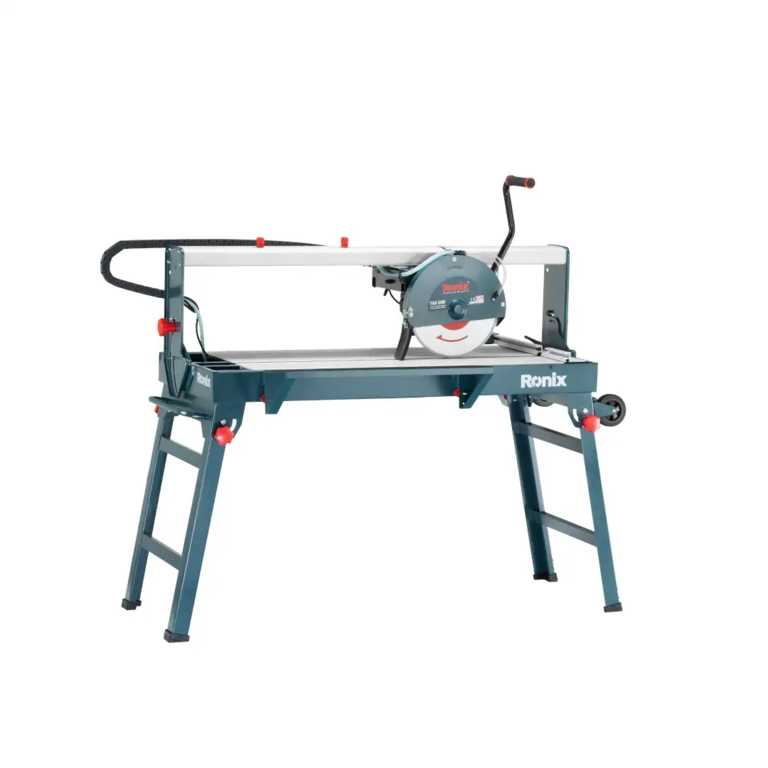

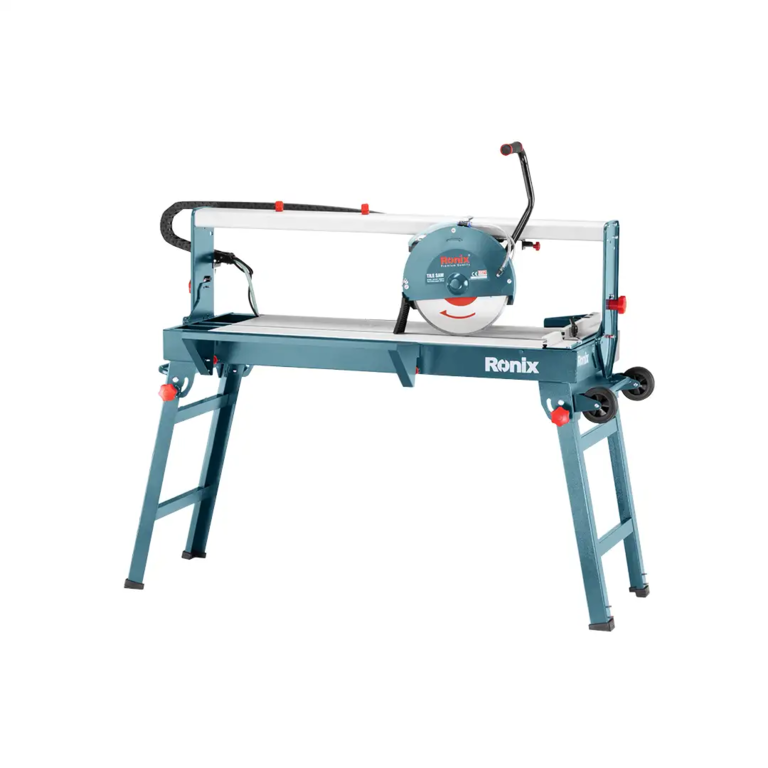

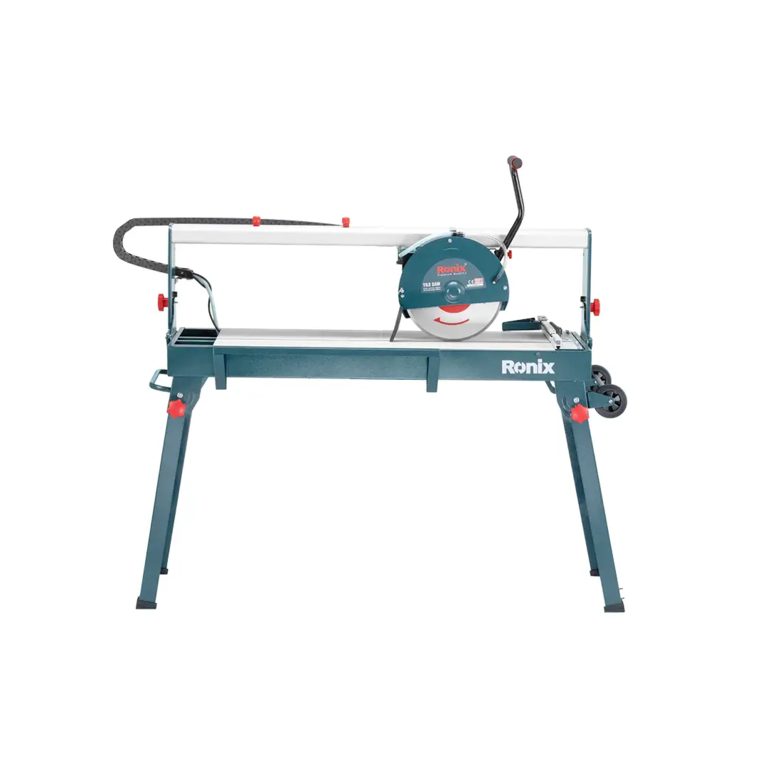

Ronix 5621 Tile Saw: Made for Ultimate Tile-Cutting

This tile saw comes with a main table and an extension table to give better leverage to the user to make longer cuts.

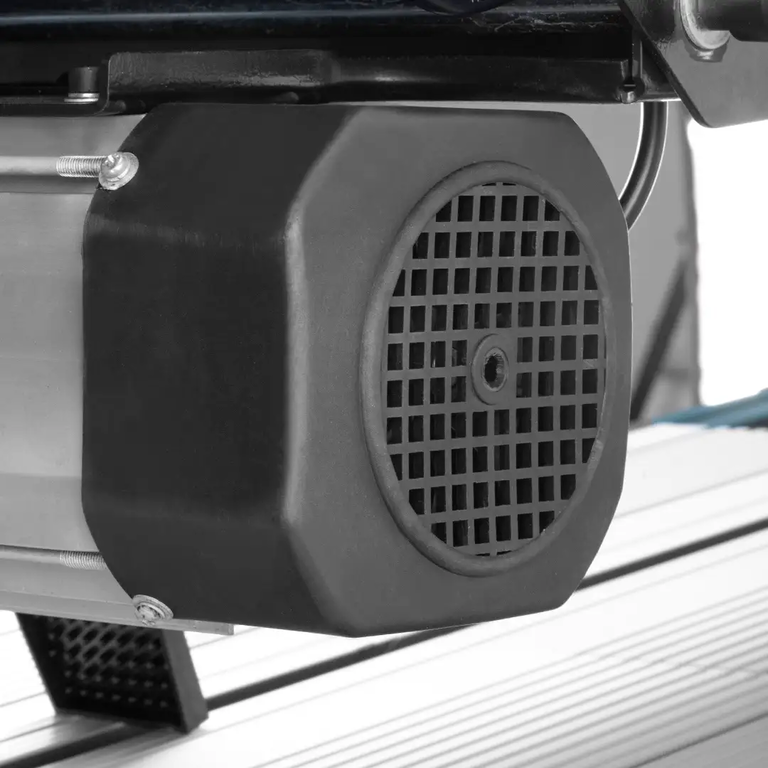

Motor and Mechanism:

This product has an exceptionally powerful and efficient motor with a no-load power of 1500 Watts. This amount of power can deliver a no-load speed of 2990 RPM. 220-240 Volts of electricity with a frequency of 50 Hz is required to power this powerful tile saw. Miter cuts, plunge cuts, or straight cuts are exceptionally easy with this tile cutter.

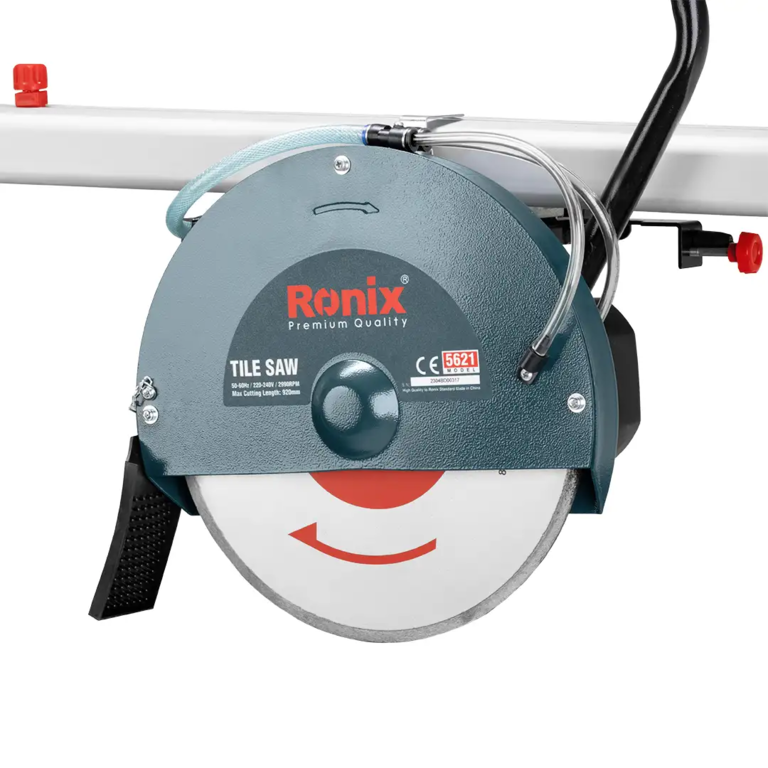

Disc Properties:

This tile saw comes with a disc made of 65 Mn Steel, Corundum, and Metal Powder. This blade can achieve a maximum cutting length of 920 mm. The diameter of the disc is as follows: Φ300 X Φ25.4 X 2.4 mm.

Dimensions:

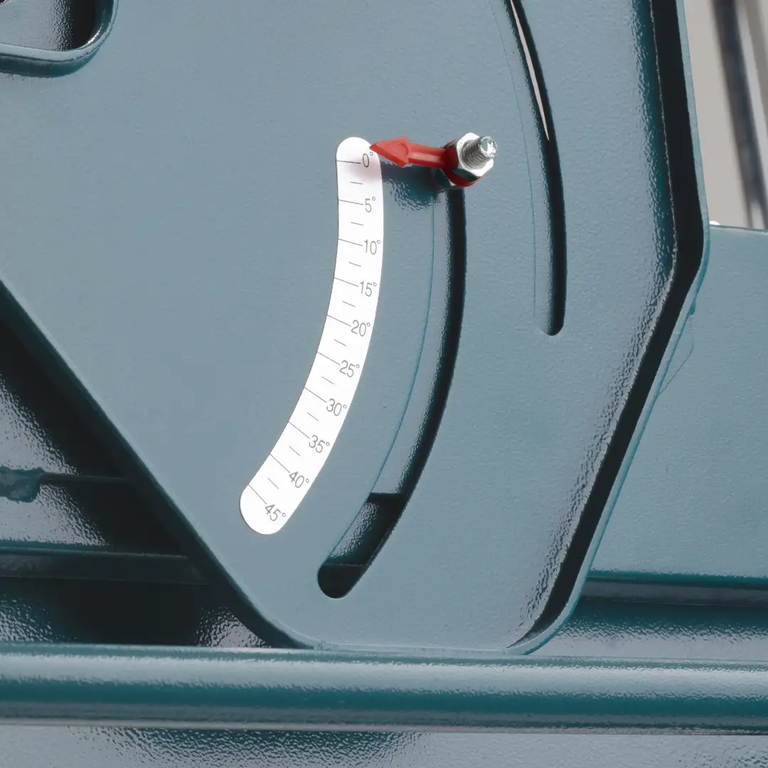

Ronix 5621 has the following dimensions: L: 1600 mm X W: 870 mm X H: 1120 mm. The cutting angles are as follows: 0-45 0°：66 mm 45°: 53 mm. The weight of this product without the accessories is 53.7 kg. If you add up the accessories (excluding the color box) the weight of this product will be 57.7 kg.

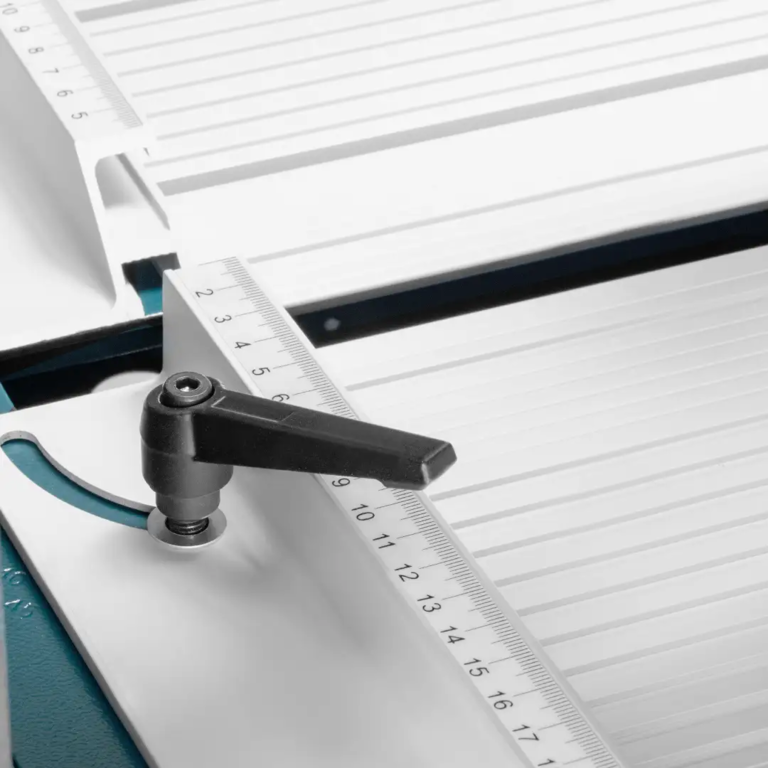

Table and Other Features:

This product has two tables, a main table, and an extension table. These two tables have an aluminum profile. The main table has the following dimensions: 1000 X 460 mm and the extension table comes with these dimensions: 640 X 170 mm.

Packaging and Accessories:

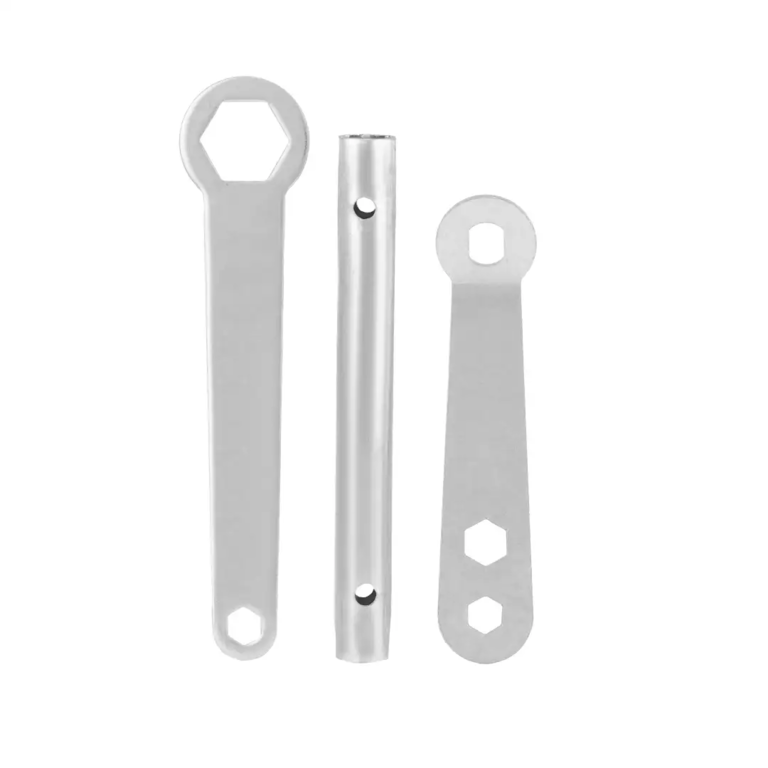

This product comes in a Ronix color box packaging with the following accessories: 2 sets of wheels, 2pcs of transport handles, 4pcs of M8×15 handles, 2pcs of M6×15 handles, 2 wrenches, a water plug, a motor-moving handle, 2pcs of stop blocks, 2pcs of block knobs, and an extension table.

Features

Download User Manual

the stone cutting saw has a strong 1500 W electric motor
the tile cutter is not only easy to use with it, straight, mitre and plunge cuts are no problem.

Download User Manual

Specifications

Model

5621

Voltage

220-240V

Frequency

50Hz

Product Dimension

L 1600mm X W870mm X H:1120mm

Table dimetion

main table: 1000 X 460mm extension table: 640 X 170mm

Disk Diameter

Φ300 X Φ25.4 X 2.4mm

Table material

aluminum profile

Disk material

65Mn，corundum，Metal powder

No load Power

1500W S6 15%

No-Load Speed

2990RPM

Angle Cutting

0-45 0°：66mm 45°:53mm

Weight

53,7Kgs (Excluding Colobox and Accessories) 57.75KGS (Excluding Colobox)

Supplied In

Color box

Includes

wheels 2sets transport handles 2pcs M8*15 handle 4pcs M6*15 handles 2pcs wrench 2pcs water plug 1pc motor moving handle 1pc stop block 2pc ,block knobs 2pcs extension table 1pc
