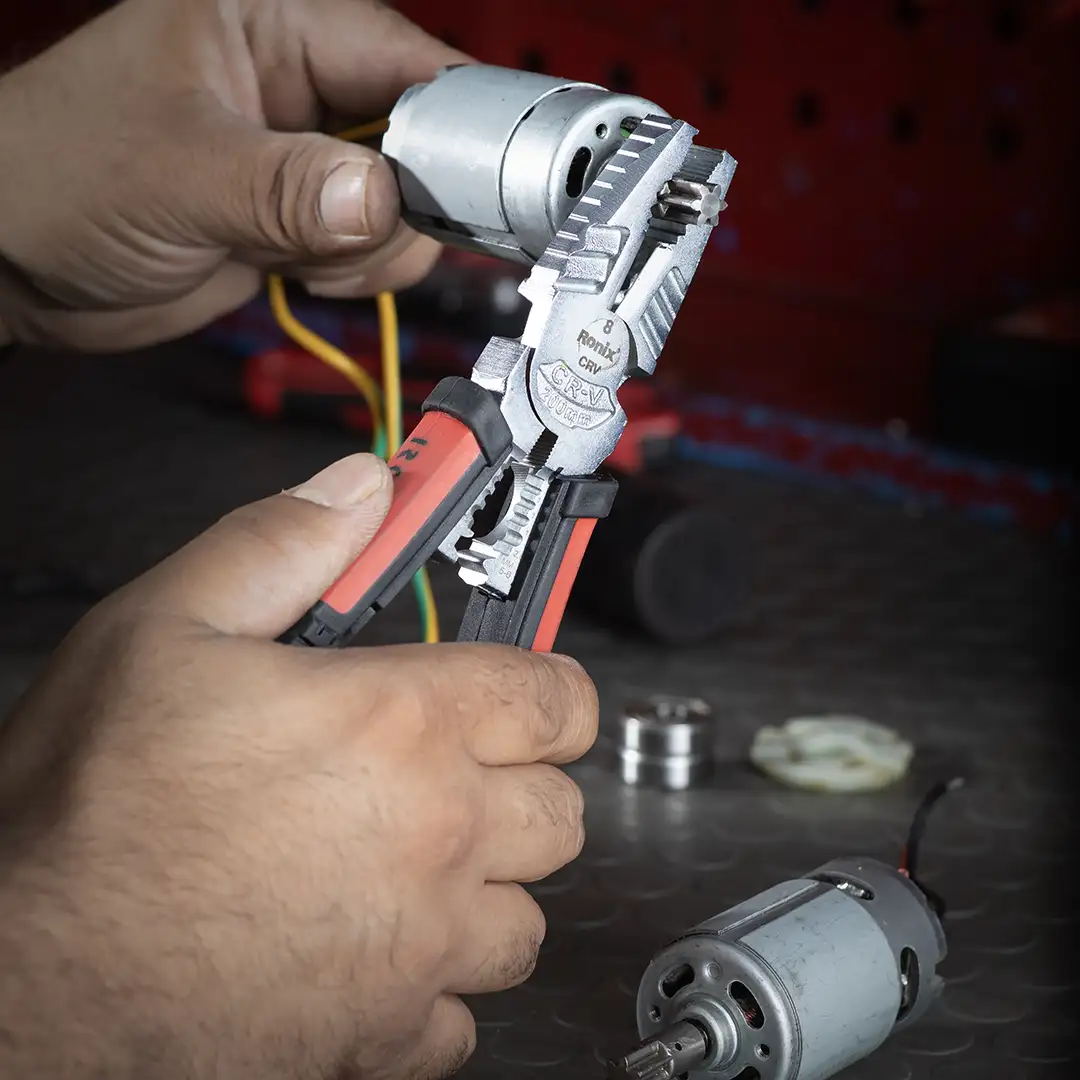

RH-1193

Multi-function combination plier

Write a review

Compare

If you want to become needless of several hand tools that can manage to wire, cut, and hold all together, all you need is Combination pliers. while if you are seeking an ideal one, RH-1193 is a multi-function Pliers that assists you in different jobs such as wire and cable stripping and crimping terminals. It is widely used in electronic components assembly, maintenance, and power line shear. Alongside, it is ideal for holding, gripping, bending, and cutting work. It can handle both hard and soft wire cutting.
For more information about this combination pliers, scroll down to read the ‘detailed description’.

Hot Sales

Download Catalog

Multi-function combination plier_details

Detailed Description

RH-1193 is a versatile hand tool, with great cutting power that can help you in many situations, so it is one of the must-haves in your toolbox.

A Versatile Combination Pliers for Progress

RH-1193 has a lot to offer when it comes to its technical features and facilities. So, if you are interested in it, read the following sections.

Body and Mechanism:

RH-1193 are 8-inch Multi-function combination pliers made of forged CRV and equipped with nail and wire holders and gripping zones for flat and round materials. It is also provided with a sharp shear edge, asymmetric inside jaws for better grips on the workpiece, and an integrated ring spanner. It comes with a 1.5-6 mm² crimping range and wire stripping range of 12/14/16/18 metric which is under American standard (AWG), and a Cable Cutting Range of up to 2.6mm and a core section area of up to 6mm².
To make it a more durable tool, it has been under the overall heat treatment process, so it enjoys the highest hardness up to HRC62. Along with all the factors, its design is so high-leverage that provides 50 percent more cutting power.

Handle:

It is equipped with an ergonomic dual-color TPR grip handle that transmits the optimum power and maximum user convenience.

Packaging:

RH-1193 is supplied in a blister card.

Features

-Multi-function tool for stripping wires up to Φ 2.0 mm, shearing wires and cables up to Φ 2.6 mm and Crimping terminals up to 6mm²
-Sharp Shear edge made of high-quality forged CRV for fast and efficient cutting
-More durability by Overall heat treatment process and highest hardness up to HRC 62
-Ideal for holding, gripping, bending and cutting work
-Ideal for cutting hard and soft wires
-Equipped WithNail- & wire holder
-Gripping zones for flat and round materials
-Asymmetric inside jaws for better grip on the workpiece
-Integrated ring spanner
- high-leverage design to provide 50-Percent more cutting power
-Dual color TPR grip handle provides User convenience
-Ergonomic handle for optimum power transmission
-Widely used in electronic components assembly, maintenance and power line shear

Specifications

Model

RH-1193

Size (mm)

Body Material

CRV

Handle cover Material

TPR

Hardness

HRC62±2

Wire Stripping Range

"American standard(AWG):12/14/16/18 metric diameter:2.0mm/1.6mm/1.3mm/1.0mm"
